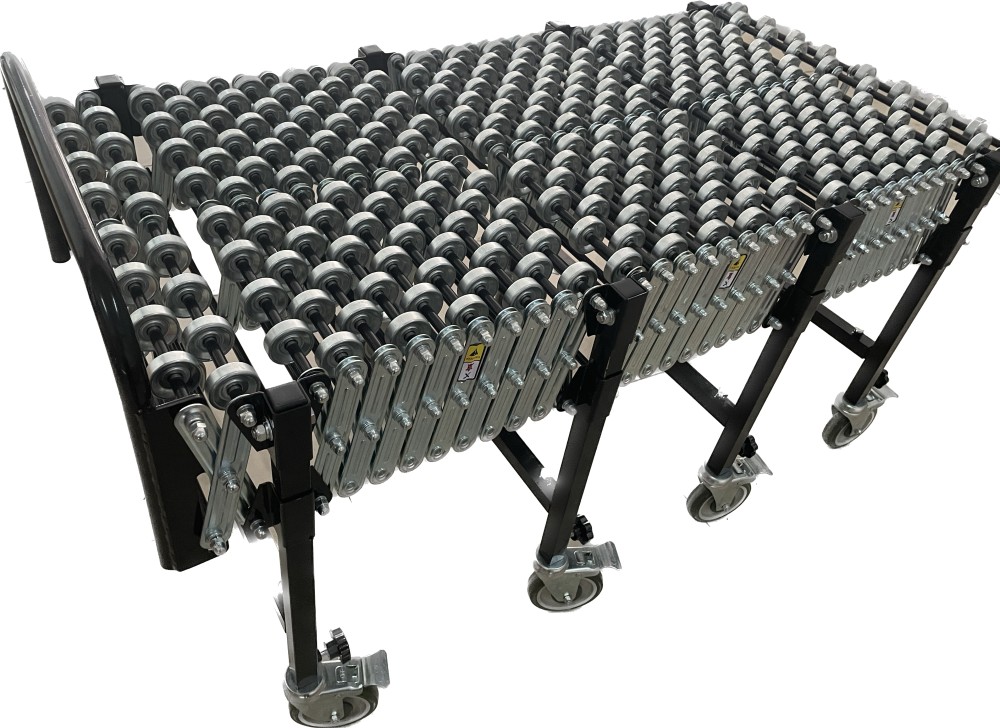

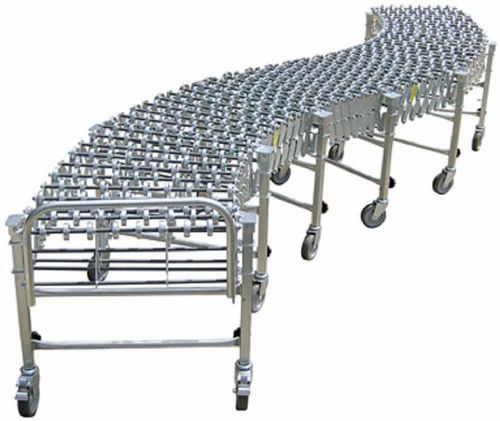

Flexible Skatewheel Conveyor
Description
Flexible Skatewheel Conveyor is a gravity-powered, expandable conveyor designed for handling cartons, boxes, packages, and other flat-bottom products. Its flexible and retractable structure allows the conveyor to be extended, curved, moved, and stored easily, making it ideal for truck loading and unloading, warehouse material handling, order picking, and temporary conveyor applications.
- Self Tracking - Cartons follow the twists and turns of the conveyor path without using engineered curves.
- Adjustable Height - Simply to raise or lower the conveyor bed height.
- Structural Steel Support - Channel steel spans the entire conveyor width for unequalled strength.
- Casters with brakes - 4'' or 5" swivel casters roll easily. Caster brakes lock both wheel and swivel simultaneously while the conveyor is in use.
- Motivation type - Without power
Features
- Height
- : 700-1000mm (Adjustable)
- Material
- : Carbon steel
- Structure
- : Flexible Skatewheel Conveyor
- Load Capacity
- : 70kg/m
- Effective Width
- : 500mm/600mm/800mm/1000mm
- Skatewheel Material
- : Plastic/steel
Why Choose This Conveyor
- Flexible & Expandable — Easily extend or retract the conveyor according to working requirements.
- Easy to Move — Equipped with swivel casters for quick repositioning.
- Adjustable Height — Conveyor height can be adjusted for different loading and unloading operations.
- No Power Required — Gravity operation reduces energy consumption and maintenance requirements.
- Curved Conveyor Path — Flexible structure allows the conveyor to follow different working paths.
- Heavy-Duty Construction — Carbon steel frame provides reliable support for industrial applications.
